| Model Number : | PVB-VP15 |
| Delivery Time : | 2-30days |

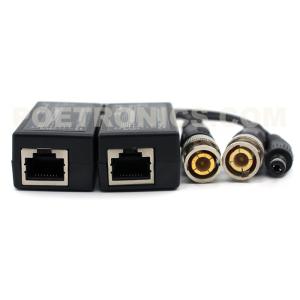

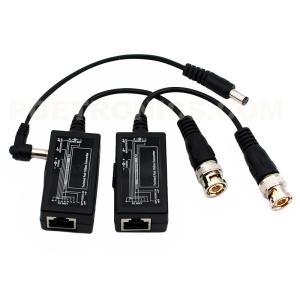

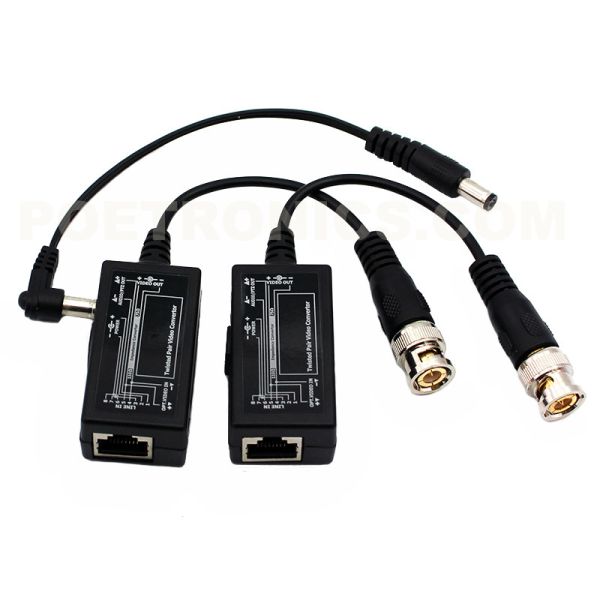

CCTV Passive Twisted-Pair Video Transceiver
● Model: PVB-VP15 (Video+Power)
● Passive twisted-pair Power and Video transceiver
● Input interface: RJ-45 socket, Optional video input: screw-socket;
● Output interface: BNC-male, Power DC connector, Audio/PTZ screw-socket;
● Signal attenuation: 0.5 dB Max;
● Common mode rejection ratio(cmrr): >60 dB;
● BNC impedance: BNC(75 Ω) ; UTP(100Ω); Wire impedance: 100 ± 20Ω;
● Transmission distance: 500m(color);600m(black and white);
● Transmission midia: unshielded cat5 or cat5e twisted-pair (inner diameter >0.5mm);
● DC Loop Resistance: <18ohms/100m; Differential capacitance: <62pF/m;
● Power: Voltage < DC 24V; Current < 800mA;
● Operating temperature: -10℃ - 65℃;
● Product size: 69*26*20mm, Packing size: 232*152*40mm (4 pairs package)
|
|
